Nothing ruins a trip to the trailer yard, the ranch, or a jobsite faster than pulling up to a scale house or a state trooper’s flashing lights because a turn signal or brake light quit working. Trailer wiring problems are one of the most common issues we help customers troubleshoot at Trailer Place in Wharton, TX, and the good news is that most of them are simple to diagnose once you know where to look.

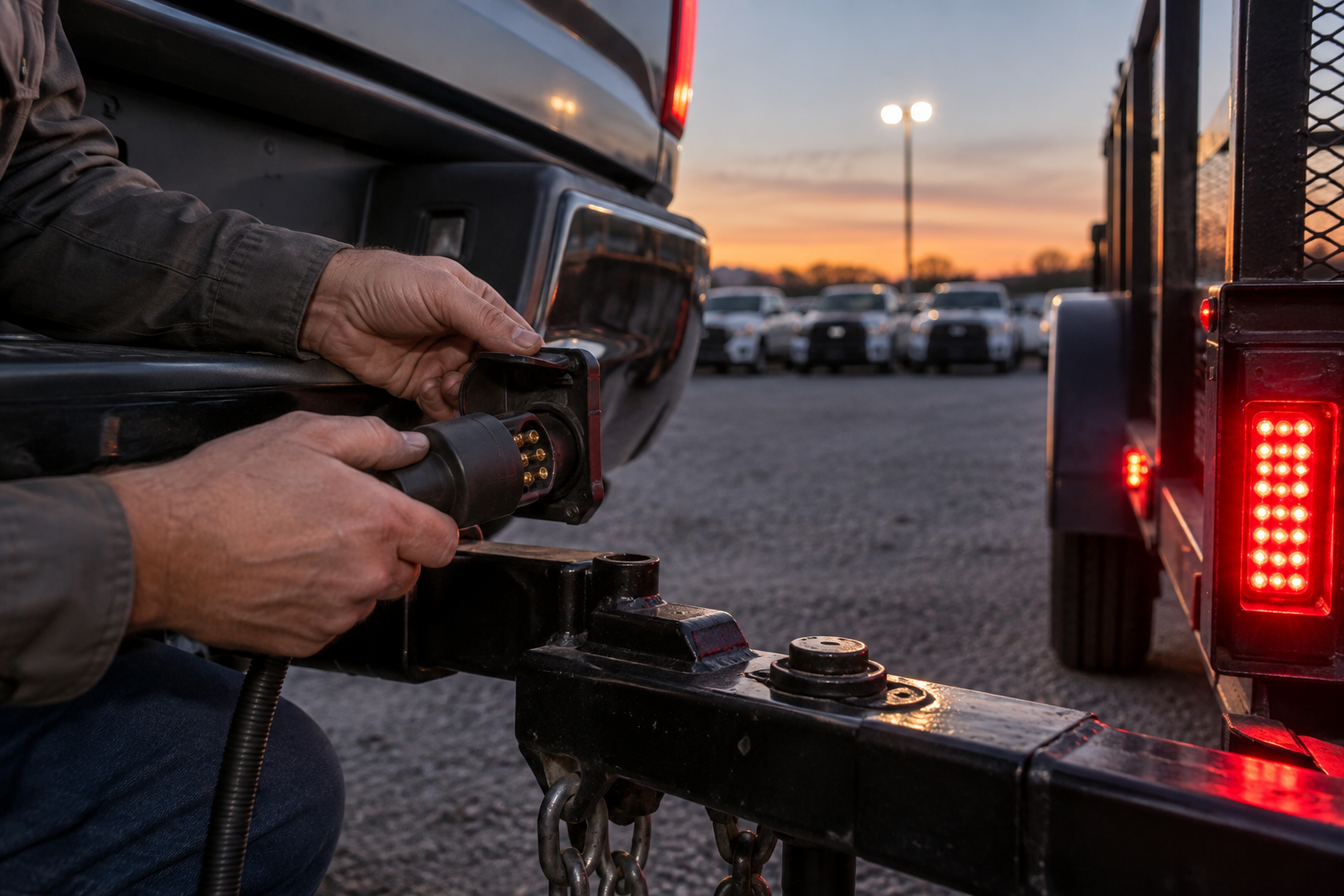

4-Pin vs 7-Pin: Know Your Connector
Most trailer electrical problems start with a mismatched or corroded connector. A 4-pin flat connector handles basic functions only — running lights, brake lights, and turn signals — and is standard on smaller utility trailers under 3,500 lbs GVWR. A 7-pin round (RV-style) connector adds a 12V power feed, electric brake control, a backup light circuit, and a ground, and is required on any trailer heavy enough to need electric brakes — most enclosed cargo, dump, and gooseneck trailers we sell. If your truck and trailer connectors don’t match, a $15-25 adapter at any parts counter solves it — never cut factory wiring to force a fit.
The Five Most Common Trailer Light Problems
- One side works, the other doesn’t — almost always a bad ground. Trailer frames use the frame itself as a ground path, and rust or paint under the ground wire’s ring terminal breaks the circuit. Scrape to bare metal and re-attach.
- All lights are dim or flickering — usually a corroded pin inside the connector, not the bulbs. Dielectric grease on both halves of the plug prevents this in salty Gulf Coast air.
- Lights work at the truck but not at the trailer — check the harness where it exits the frame near the tongue; this is the spot most likely to get pinched, chafed, or soaked.
- Brakes don’t engage — on a 7-pin setup, this points to the blue wire circuit or the brake controller in the cab, not the trailer lights themselves.
- Everything worked last trip, nothing works now — check the tow vehicle’s fuse box first; a blown trailer-lighting fuse is the single fastest fix on this list.
LED vs Incandescent: Worth the Upgrade?
Every trailer we sell new at Trailer Place, including our in-house STAR livestock trailers, ships with sealed LED lighting. LEDs draw a fraction of the amperage of old incandescent bulbs, which matters on long gooseneck and tandem-axle wiring runs where voltage drop causes dim lights at the rear of the trailer. LEDs also seal against moisture far better than bulb-and-socket housings, which is the biggest single upgrade you can make if you’re fighting recurring light failures on an older trailer.
When to Repair vs When to Consider a Newer Trailer
A full wiring harness replacement runs $80-200 in parts depending on trailer length, plus labor if you’re not doing it yourself — reasonable for a trailer that’s otherwise sound. But if you’re seeing wiring failures alongside a rusted frame, worn axles, or a title full of extension harness patches, it may be more cost-effective to roll that repair budget into a newer trailer. A single-axle vs tandem-axle unit from Diamond C or Iron Bull comes with fresh, sealed wiring and a warranty, and financing spreads the cost out — see our trailer financing guide for options.
Legal Reasons This Matters
Texas law requires working brake lights, turn signals, and tail lights on any trailer towed on public roads, and a trooper can and will write a citation or order a trailer off the road for non-functioning lights, especially after dark. Before any long haul from Wharton toward Houston, Louisiana, or beyond, walk around the trailer with a helper pressing the brake pedal and each turn signal — a two-minute check that avoids a roadside headache.
